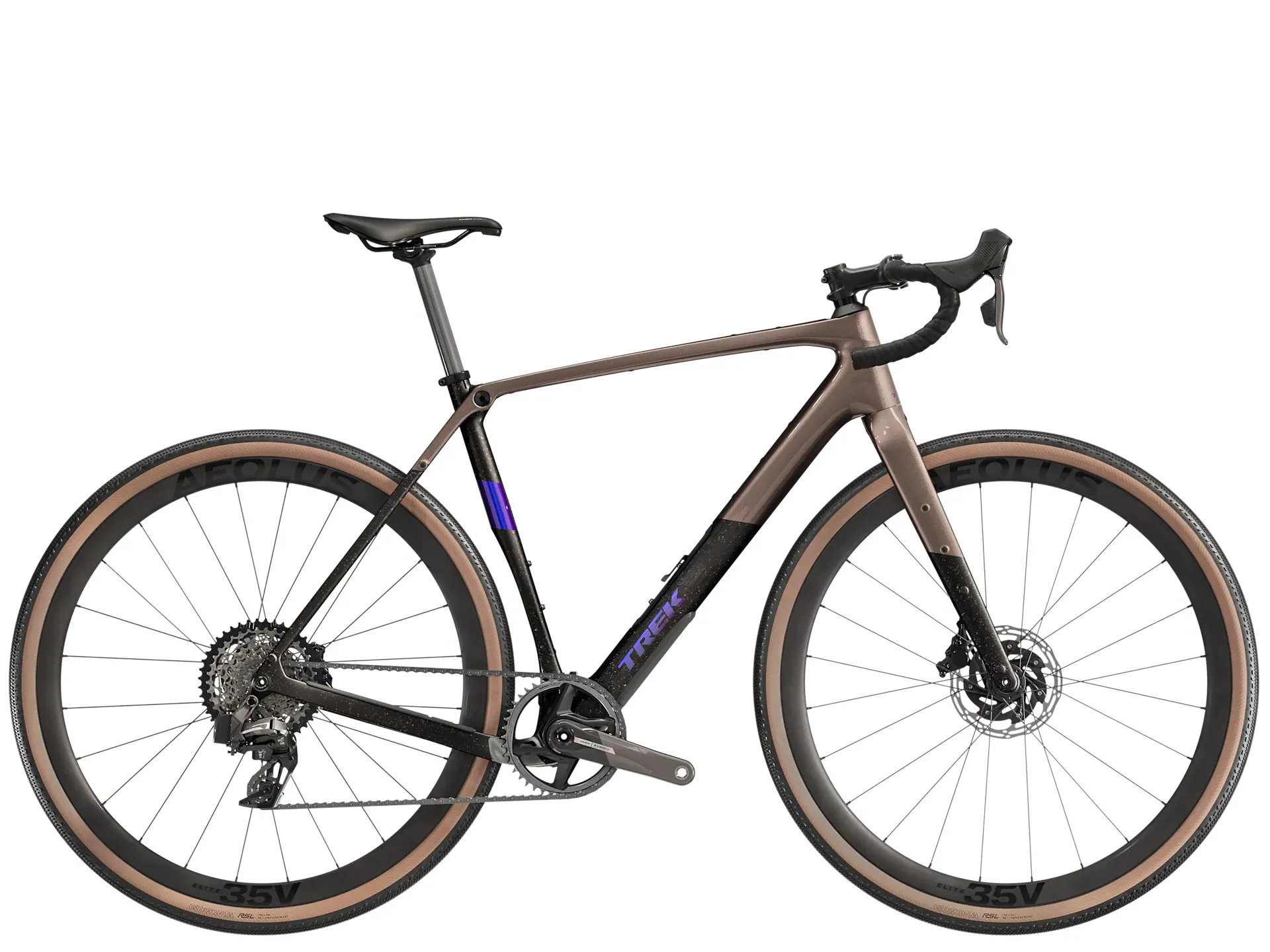

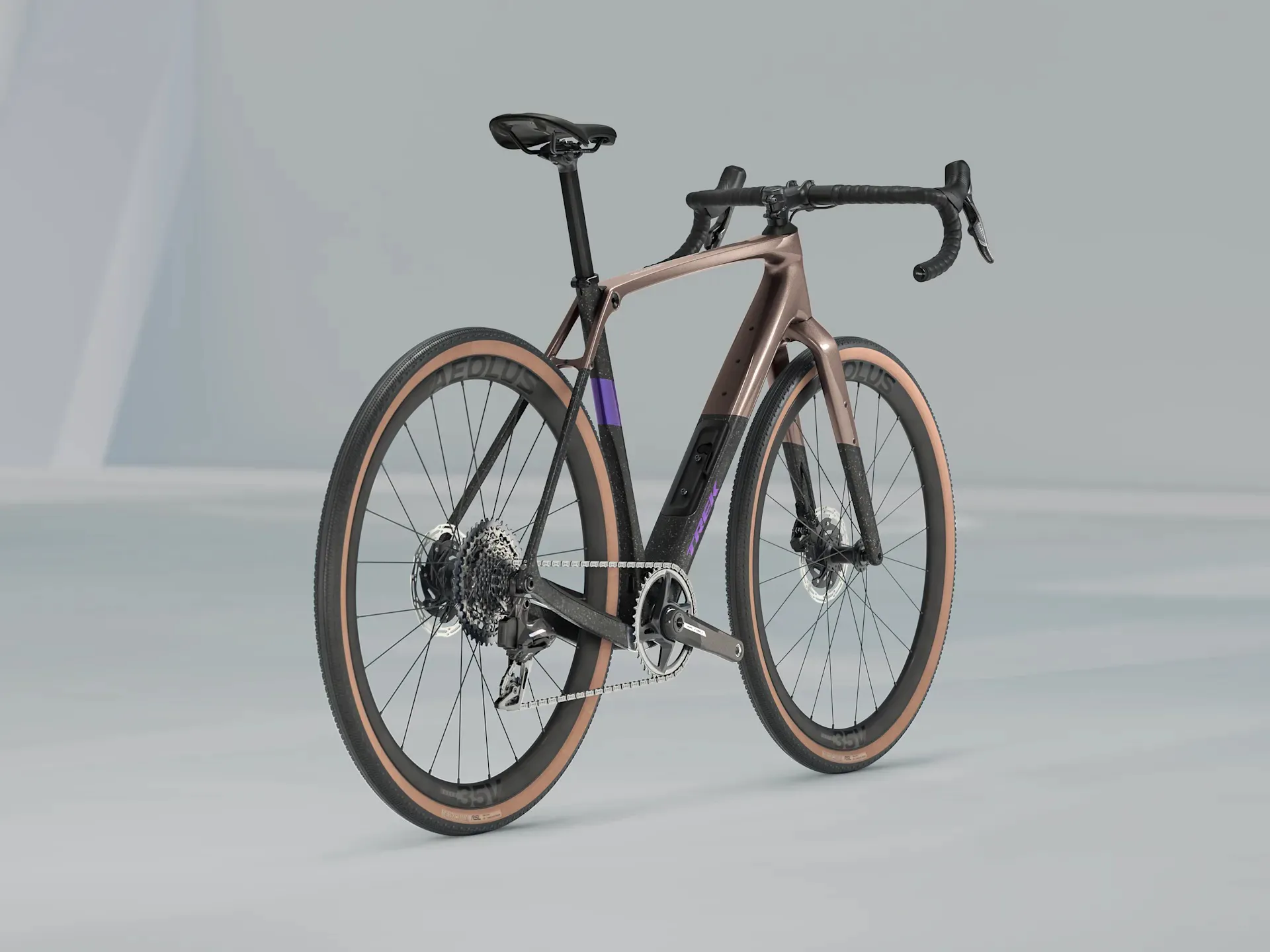

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte-1

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte-2

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte-3

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte-4

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.

Trek

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte

£6,350.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns

Please contact us on 01382 666644 if you would like to return an item.

For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike In Bronze Age/Carbon Smoke Matte

Season:2025

Brand:Trek

Code:47073BNZAGECBNSMKMAT

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.

Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps to soak up jarring road vibrations, helping you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS wireless 12-speed group set.

It's right for you if...You're itching for adventure and want a bike that's up for taking the road less travelled. You want IsoSpeed comfort tech to help you stay comfortable on the hardest miles, an upgraded drivetrain that can hang tough when the gravel gets deep and plenty of mounts to carry your gear and hydration packs.

The tech you get - A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Rival AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post and Tubeless Ready Bontrager Paradigm Comp wheels with 42 mm tyres.

The final word - The Checkpoint SL 6 AXS Gen 3 is made to explore, with the chatter-smoothing benefit of IsoSpeed, a lightweight carbon frame, and upgraded components where they matter most, like the SRAM Rival AXS wireless shifting.

Features:

The Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bike-packing trips and more
Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher for longer

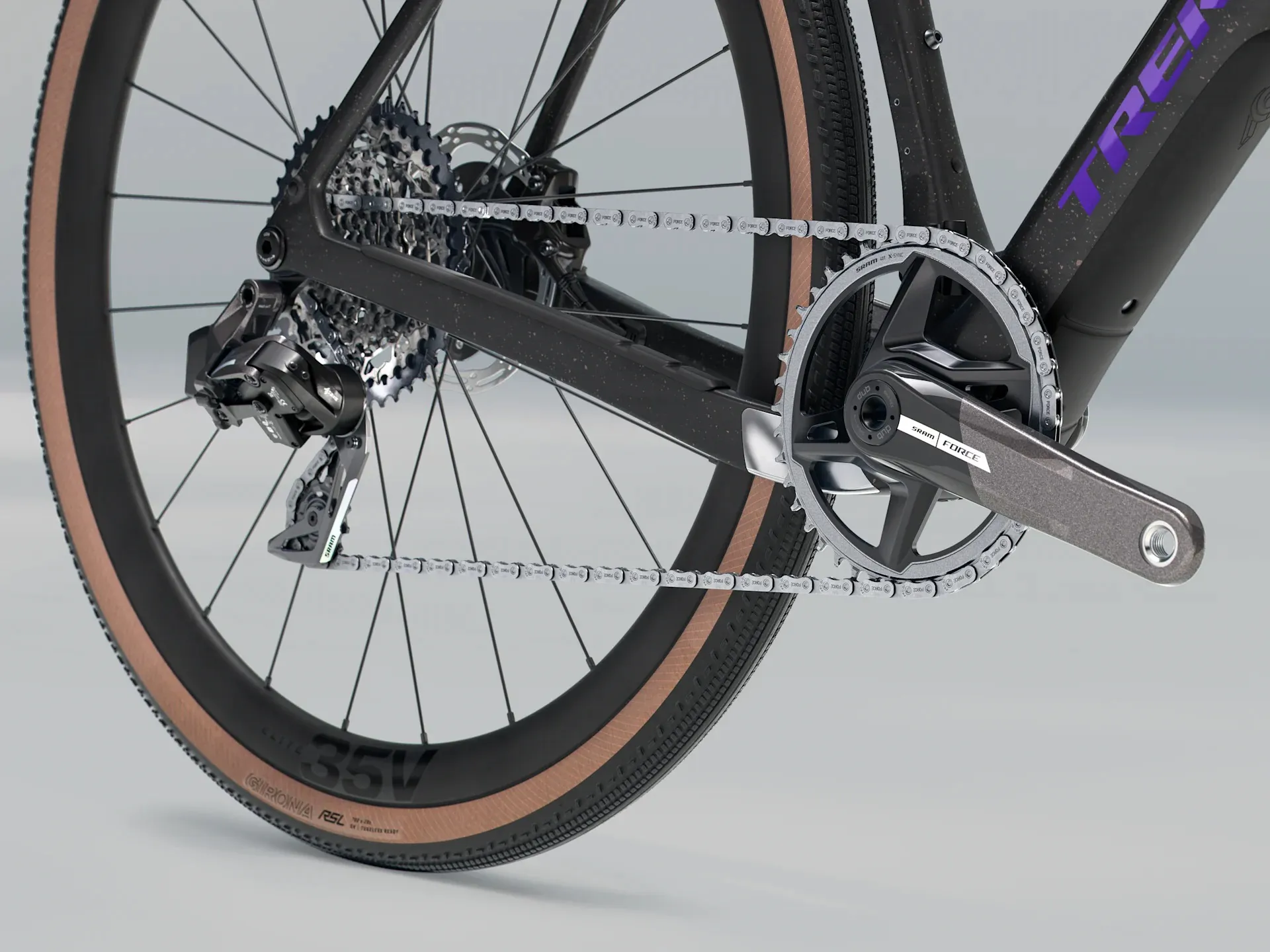

You get crisp and clean shifts from the upgraded SRAM Rival AXS wireless electronic 12-speed drivetrain
Clearance for 50 mm tyres (as measured) means that you can add extra traction and cushion for rowdy gravel roads

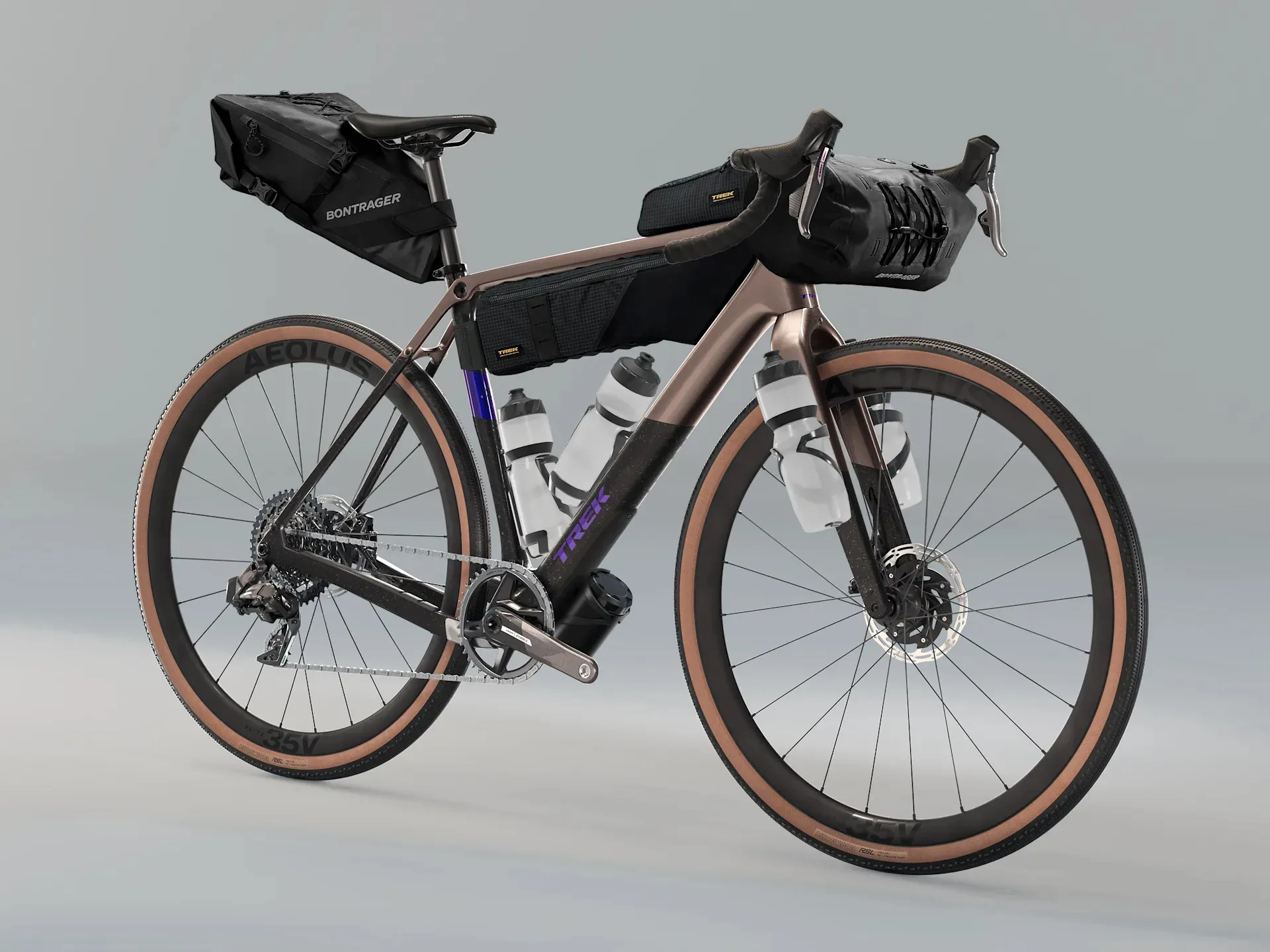

You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, mudguards and Adventure Bags that were designed to perfectly fit the Checkpoint
Dropper post and suspension fork compatible (except size XS)

Technical Information

Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

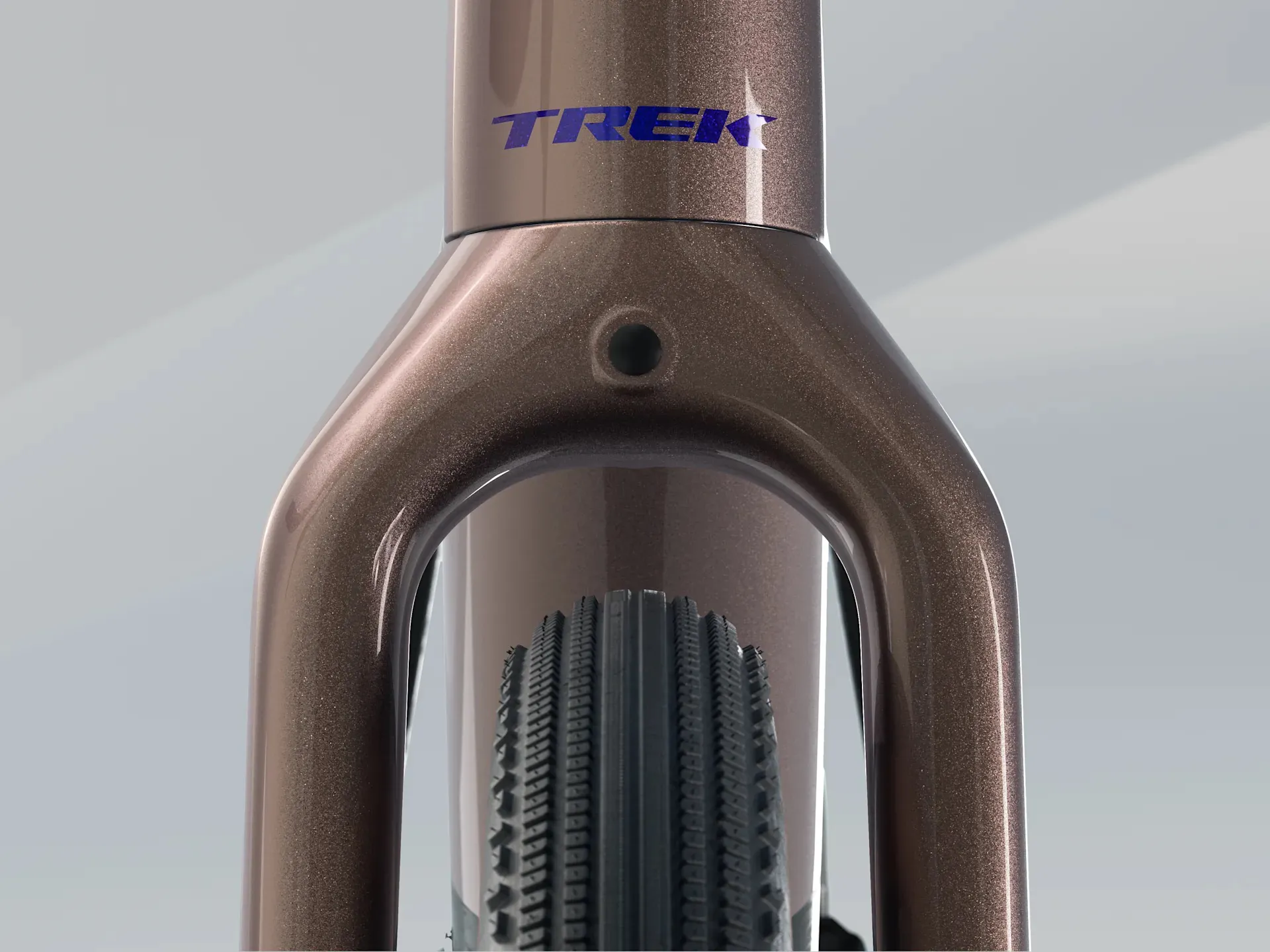

Fork	Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Max compatible fork travel	40 mm (XS: compatible with rigid fork only) See Checkpoint SL Gen 3 FAQ for compatible options

Weight	ML - 9.00 kg / 19.85 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery	SRAM eTap battery pack (with charger)

*Shifter	Size:XS, S, M, ML, L, XL SRAM Force AXS D2, 12-speed
*Shifter	Size:XS, S, M, ML, L, XL SRAM Force AXS D2, 12 speed
Rear derailleur	SRAM Force XPLR AXS D2, 44T max cog
*Crank	Size:XS, S SRAM Force 1 D2, 40T, DUB, 165 mm length
	Size:M SRAM Force 1 D2, 40T, DUB, 170 mm length
	Size:ML, L SRAM Force 1 D2, 40T, DUB, 172.5 mm length
	Size:XL SRAM Force 1 D2, 40T, DUB, 175 mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XG-1271, 10-44, 12-speed
Max. chainring size	1x:44 2x: 46/30

Wheel front	Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	50 mm without mudguards, 42 mm with mudguards

*Saddle	Size:XS, S Verse Short Elite, hollow magnesium rails, 155 mm width
*Saddle	Size:M, ML, L, XL Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

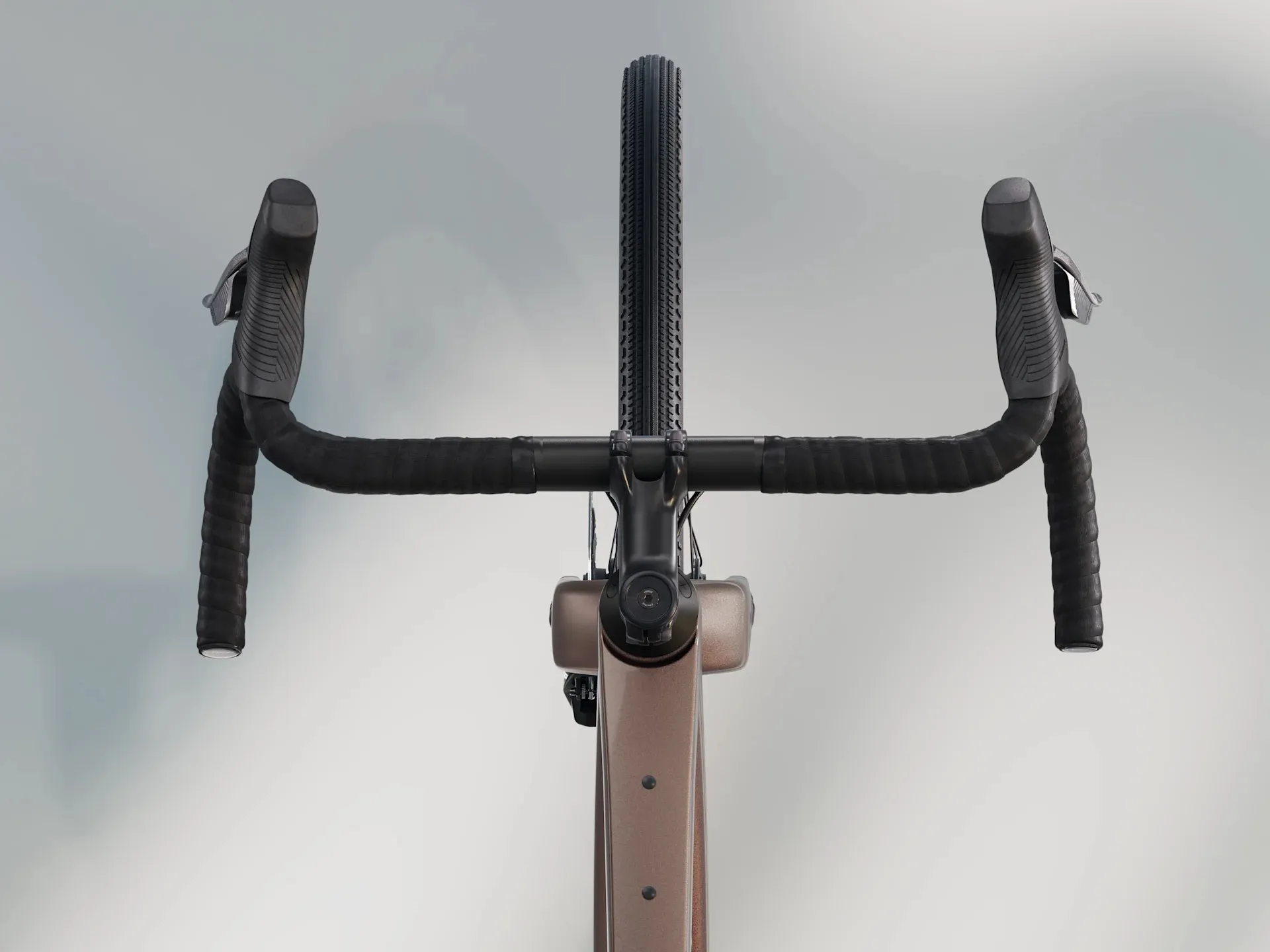

*Handlebar	Size:XS Bontrager Pro Gravel, 40 cm width
	Size:S, M Bontrager Pro Gravel, 42 cm width
	Size:ML, L Bontrager Pro Gravel, 44 cm width
	Size:XL Bontrager Pro Gravel, 46 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size:XS Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size:S Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size:M, ML Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size:L Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size:XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake	SRAM Force AXS hydraulic disc
Brake rotor	SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size	Max brake rotor sizes: 180mm front and rear
