Checkpoint ALR 5 is the best value gravel bike in the line-up.
Checkpoint ALR 5 is the best value gravel bike in the line-up.
Trek

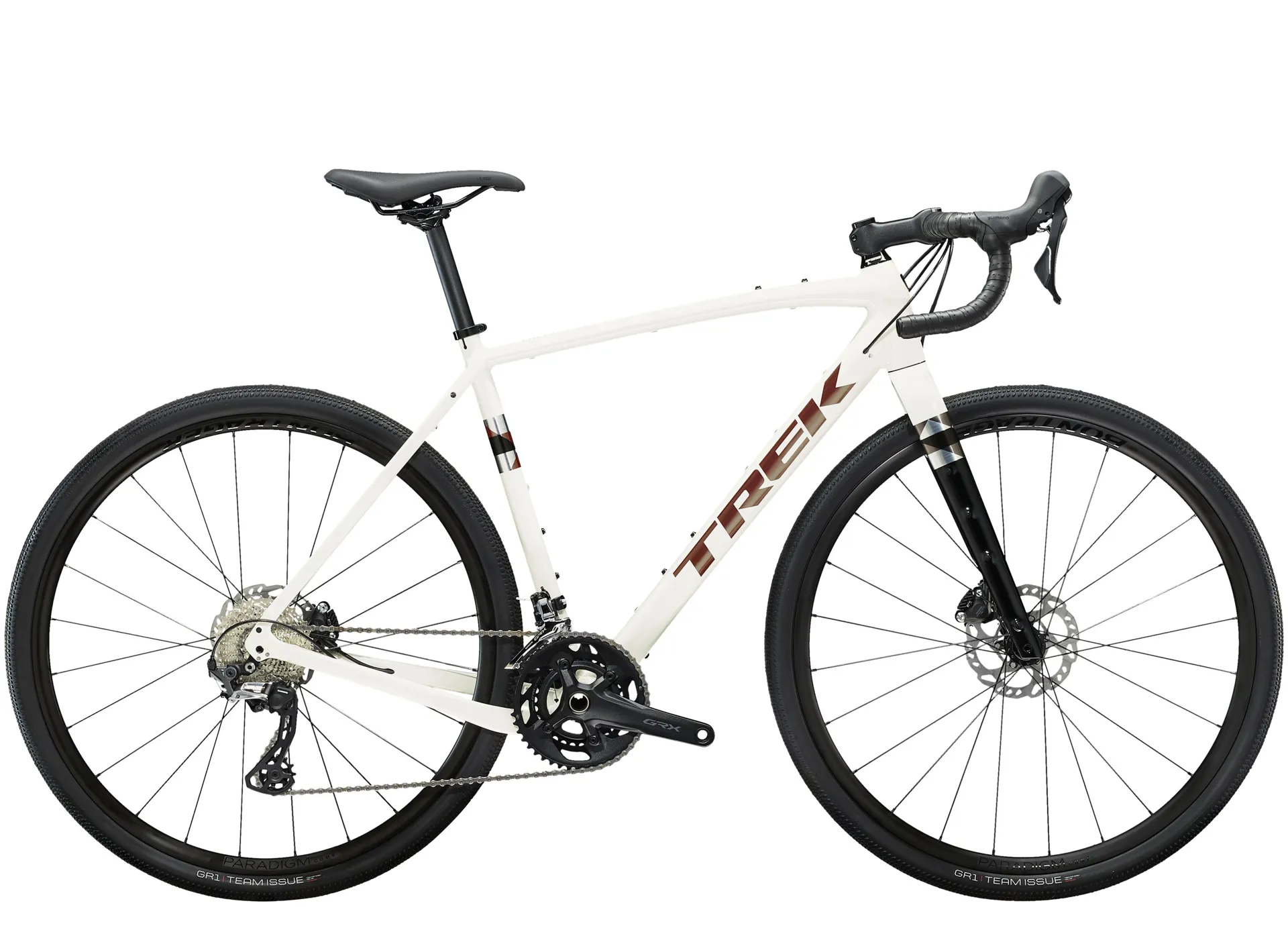

Trek Checkpoint ALR 5 Gravel Bike in Era White/Trek Black

£2,000.00 £2,500.00 20% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."



Trek Checkpoint ALR 5 Gravel Bike in Era White/Trek Black

Season:2023

Brand:Trek

Code:35172EraWHTBLK

Checkpoint ALR 5 is the best value gravel bike in the line-up.

It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

Features:

  • All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  • This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bike-packing and daily commutes
  • Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
  • Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water
Technical Information
  • Frame
    300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
  • Fork
    Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Frame fit
    Gravel
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
  • Tyre part
    Size: 49/52/54/56/58/61, Bontrager TLR sealant, 180 ml/6 oz
    Size: 49/52/54/56/58/61, Bontrager XXX TLR valve, 50 mm
  • Rim strip
    Bontrager Aeolus XXX rim strip
  • Max tyre size
    700x45c / 650x2.1" Bontrager tires
  • Shifter
    Shimano GRX RX600, 11-speed
  • Front derailleur
    Shimano GRX RX810, braze-on
  • Rear derailleur
    Shimano GRX RX810, long cage, 34T max cog
  • Crank
    Size: 49, Shimano GRX RX600, 46/30, 165 mm length
    Size: 52, Shimano GRX RX600, 46/30, 170 mm length
    Size: 54/56, Shimano GRX RX600, 46/30, 172.5 mm length
    Size: 58/61, Shimano GRX RX600, 46/30, 175 mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 HG700-11, 11-34, 11-speed
  • Chain
    Shimano HG601
  • Max. chainring size
    1x: 44T SRAM or 50T Shimano, 2x: 50/34
  • Saddle
    Size: 49/52, Bontrager P3 Verse Comp, steel rails, 155 mm width
    Size: 54/56/58/61, Bontrager P3 Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
  • Handlebar
    Size: 49, Bontrager Elite Gravel, 38 cm width
    Size: 52, Bontrager Elite Gravel, 40 cm width
    Size: 54/56, Bontrager Elite Gravel, 42 cm width
    Size: 58/61, Bontrager Elite Gravel, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
    Size: 52/54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 56/58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Head set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake rotor
    Shimano SM-RT70, CenterLock, 160 mm
  • Weight
    56 - 21.50 lbs / 9.75 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
