The Marlin 6 is the perfect ride for progressing your skills on the trails.
The Marlin 6 is the perfect ride for progressing your skills on the trails.
Trek

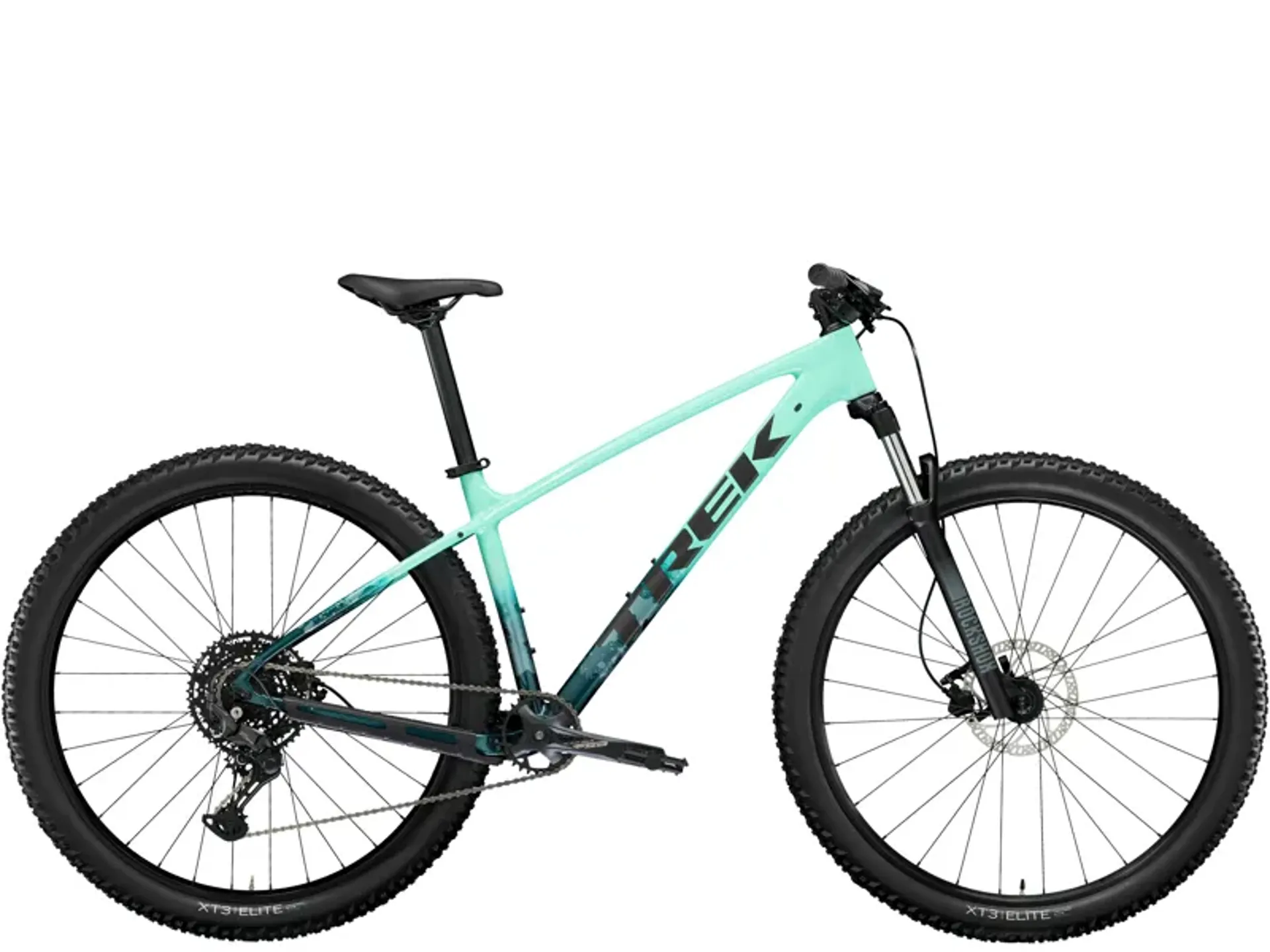

Trek Marlin 6 Gen 3 XC Mountain Bike 2025 in Miami Green to Dark Aquatic Fade

£850.00
Size Guide
Trek Marlin 6 Gen 3 XC Mountain Bike 2025 in Lava Trek Marlin 6 Gen 3 XC Mountain Bike 2025 in Rage Red to Deep Dark Blue Trek Marlin 6 Gen 3 XC Mountain Bike 2025 in Galactic Grey to Lithium Grey Fade
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."



Trek Marlin 6 Gen 3 XC Mountain Bike 2025 in Miami Green to Dark Aquatic Fade

Season:2025

Brand:Trek

Code:40962GRN

The Marlin 6 is the perfect ride for progressing your skills on the trails.

Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Features:

  • The Marlin Gen 3 gives you serious trail capability with bigger tyre clearance, internal dropper post routing, ThruSkew rear axle and longer, slacker geometry that gives you more stability on steeper trails and at higher speeds
  • Its RockShox fork gives you 100 mm of suspension for turning rocks and roots on the trail into smooth-sailing
  • Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  • Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
  • Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount
Technical Information
  • Frame
    Size: XXS , XS
    Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
    Size: S , M , ML , L , XL , XXL
    Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
  • Fork
    Size: XXS
    RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
    Size: XS , S
    RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
    Size: M , ML , L , XL , XXL
    RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
  • Max compatible fork travel
    120mm, XXS: 80mm
  • Hub front
    Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
  • Rim
    Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
  • Tyre
    Size: XXS
    Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35"
    Size: XS , S
    Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35"
    Size: M , ML , L , XL , XXL
    Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.35"
  • Max tyre size
    Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
  • Shifter
    Shimano U6000, 10-speed
  • Rear derailleur
    Shimano CUES U6000 GS
  • Crank
    Size: XXS , XS
    FSA Alpha Drive, 30T, 160 mm length
    Size: S , M , ML
    FSA Alpha Drive, 30T, 170 mm length
    Size: L , XL , XXL
    FSA Alpha Drive, 30T, 175 mm length
  • Bottom bracket
    FSA, 73 mm, threaded cartridge, 122.5 mm spindle
  • Cassette
    Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
  • Chain
    Shimano LG500
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T, 2x: 36/22
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost
    Size: XXS
    Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
    Size: XS , S , M
    Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
    Size: ML , L , XL , XXL
    Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
  • Handlebar
    Size: XXS , XS
    Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
    Size: S
    Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
    Size: M , ML , L , XL , XXL
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Size: XXS , XS , S
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
    Size: M , ML , L
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
    Size: XL
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
    Size: XXL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
  • Head set
    Semi-integrated, 1-1/8"
  • Brake rotor
    Tektro, 6-bolt, 160mm
  • Brake Set
    Size: XXS , XS , S
    Tektro HD-M276 hydraulic disc, short reach
    Size: M , ML , L , XL , XXL
    Tektro HD-M275 hydraulic disc
  • Rotor size
    Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
  • Weight
    M - 14.50 kg / 31.97 lbs (with tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
