The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain.
The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain.
Trek

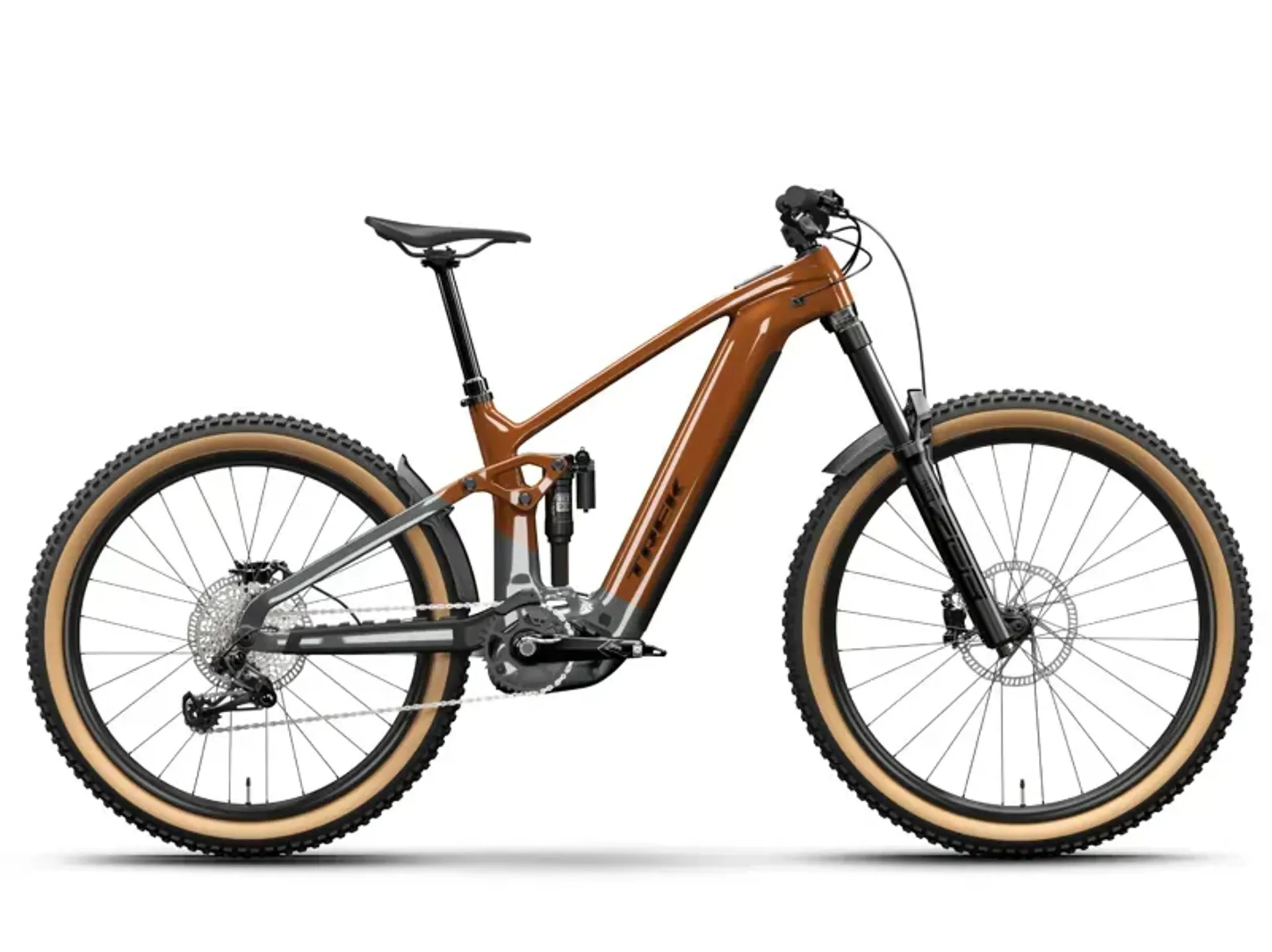

Trek Rail+ 9.8 XT Carbon Electric MTB in Pennyflake

£7,750.00
Size Guide
Trek Rail+ 9.8 XT Carbon Electric MTB in Smoke Trek Rail+ 9.8 XT Carbon Electric MTB in Red Smoke Trek Rail+ 9.8 XT Carbon Electric MTB in Lavender Haze
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."



Trek Rail+ 9.8 XT Carbon Electric MTB in Pennyflake

Season:2025

Brand:Trek

Code:48452ORG

The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain.

It features amazing upgrades to the suspension, drive train and brakes for exceptional performance on the gnarliest runs.


Technical Information
  • Frame
    OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Fork
    RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock
    RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
  • Max Compatible Fork Travel
    170mm (580mm axle-to-crown)
  • Wheel Front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel Rear
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
  • Hub Front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub Rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer Rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Comp 30, Tubeless-Ready
  • Spokes
    14 g stainless steel, black
  • Tyre
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60"
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Sealant
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    Frame: 29x2.60", Fork: See manufacturer
  • Battery
    Bosch PowerTube 625 Wh
  • Charger
    Bosch standard 4A, 220-240 V
  • Computer
    Bosch Kiox with Anti-theft solution
  • Motor
    Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h max assist
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear Derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen, 34T, steel
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Pedal
    VP-536 nylon platform
  • Max. Chainring Size
    1x: 34T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
  • Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Head Set
    Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano SLX M7120 4-piston hydraulic disc
  • Brake Rotor
    Shimano RT76, 6-bolt, 203 mm
  • Weight
    M - 22.34 kg / 49.25 lbs (with tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
