The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps.
The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps.
Trek

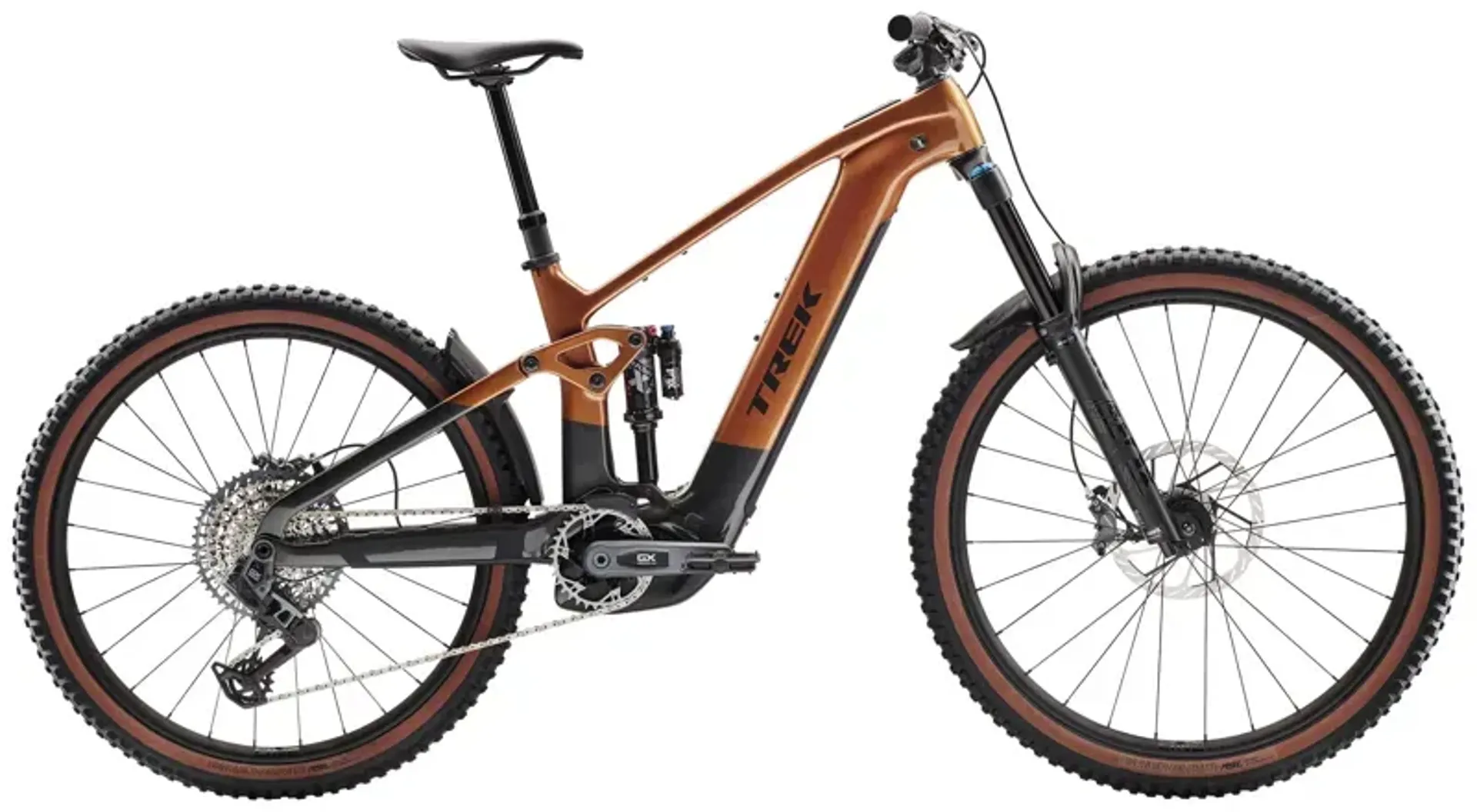

Trek Rail+ 9.8 GX AXS T-Type Electric MTB In Pennyflake

£7,750.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."



Trek Rail+ 9.8 GX AXS T-Type Electric MTB In Pennyflake

Season:2025

Brand:Trek

Code:48465ORG

The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps.

With 160 mm front and rear travel, it's ready to rip through the rough, and it's backed by a powerful Bosch Performance CX drive system that makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a SRAM GX AXS wireless transmission for crisp shifts under load.

It's right for you if...You chase big rides with even bigger terrain and need an e-bike that can keep up. You want plenty of suspension for gobbling up roots and rocks and a full-assist motor that doesn't wallow on punchy climbs. You care about upgrades where they matter most, like a carbon frame, upgraded suspension package and fully wireless SRAM transmission.

The tech you get - An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm RockShox ZEB Select+ fork with DebonAir spring and Charger 3 RC2 damper, and RockShox Super Deluxe Select+ rear shock. Tubeless Ready Bontrager Line Comp 30 wheels, a wireless SRAM GX AXS transmission, 4-piston SRAM CODE Bronze hydraulic disc brakes and an internally-routed dropper post.

The final word - The Rail+ 9.8 is ready for epic rides that take you far beyond the beyond. With plenty of travel for rowdy terrain, a powerful motor for crushing big climbs, and a massive battery that keeps you going mile after mile, this beast of a bike is built for it all.

Features:

  • The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
  • You get upgrades where they matter, like a wireless SRAM transmission and RockShox suspension package
  • You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
  • The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
  • The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage
Technical Information
  • Frame
    OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle, 160 mm travel
  • Fork
    Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel
  • Shock
    Fox Performance Elite Float X, 2-position damper, 205mm x 65mm
  • Max Compatible Fork Travel
    180 mm
  • Wheel Front (Size: S)
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
  • Wheel Front (Size: M, L, XL)
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel Rear (Size: S)
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
  • Wheel Rear (Size: M, L, XL)
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 27.5"
  • Skewer Rear
    Bontrager Switch thru-axle, removable lever
  • Tyre (Size: S, M, L, XL)
    Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"
  • Tyre (Size: M, L, XL)
    Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    Frame: 27.5x2.60", Fork: See manufacturer
  • Controller
    Bosch System Controller BRC3100, smart system
  • Motor
    Bosch Performance Line CX, 20 mph (25 km/h in Europe)
  • Shifter
    SRAM AXS POD
  • Rear Derailleur
    SRAM GX Eagle AXS, T-Type
  • Crank
    SRAM GX, 160 mm length
  • Cassette
    SRAM Eagle XS-1275, T-Type,10-52, 12-speed
  • Chain
    SRAM GX Eagle, T-Type, 12-speed
  • Pedal
    VP-536 nylon platform
  • Max. Chainring Size
    1x: 36T
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost (Size: S)
    Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
  • Seatpost (Size: M)
    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Seatpost (Size: L, XL)
    Bontrager Line Dropper, 200 mm travel, internal routing, 34.9 mm, 515 mm length
  • Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Brake
    SRAM CODE Bronze 4-piston hydraulic disc
  • Brake Rotor (Size: S, M, L, XL)
    SRAM 6-bolt, 200 mm
  • Brake Rotor (Size: S, M, L, XL)
    SRAM HS2, 6-bolt, 220mm
  • Rotor Size
    Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
