The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.
The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.
Trek

Trek Fuel Exe 9.5 Deore 360Wh E-Mountain Bike in Hex Blue

£4,275.00 £5,550.00 23% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the
Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

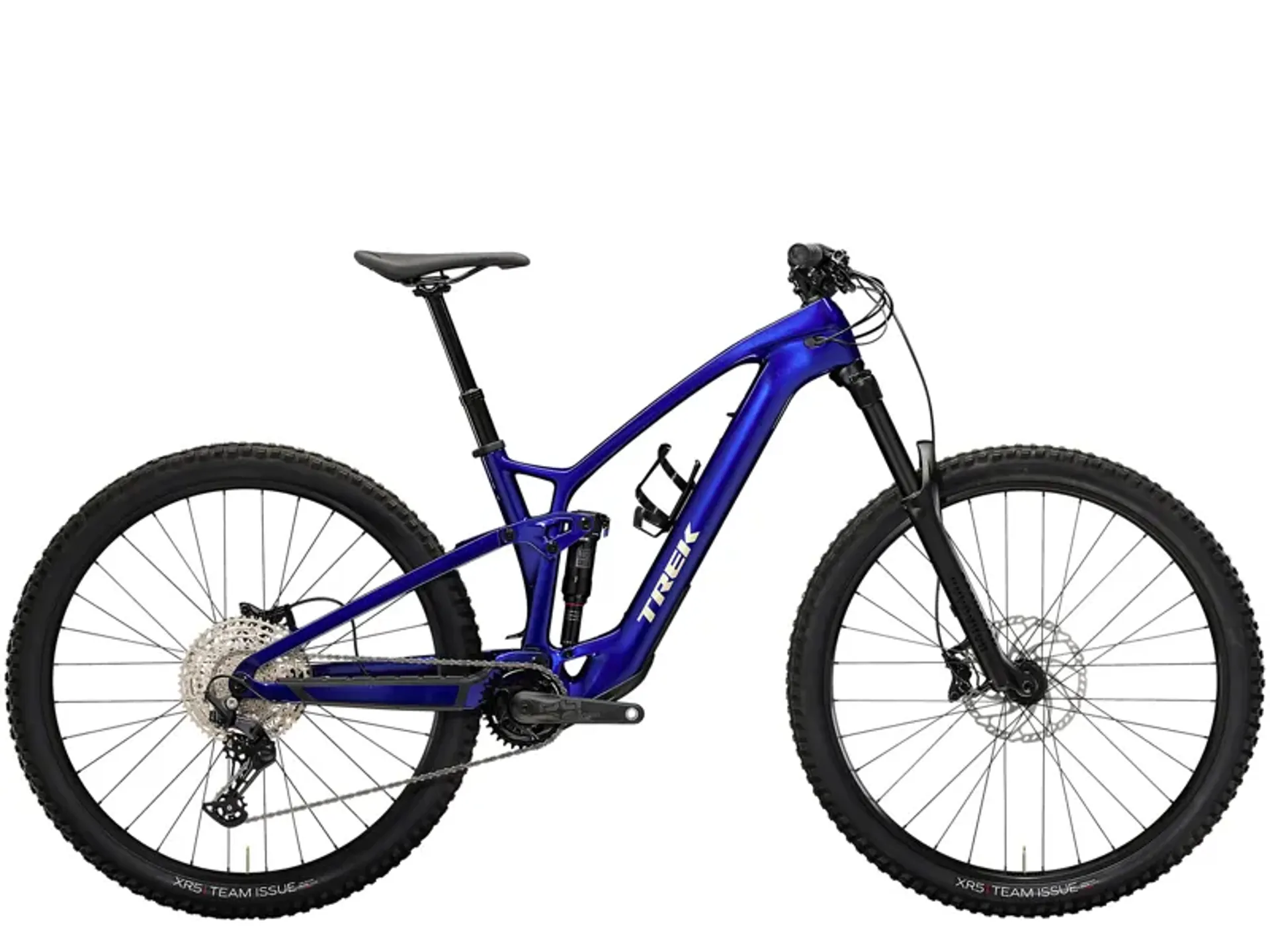

Trek Fuel Exe 9.5 Deore 360Wh E-Mountain Bike in Hex Blue

Season:2023

Brand:Trek

Code:36361HexBLU

The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.

It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150 mm RockShox Gold RL fork that makes quick work of rock gardens, and 140 mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.
Technical Information

*Please note – spec applies to all sizes unless listed separately

Frameset

FrameOCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
ShockRockShox Deluxe Select+ RT, 205mm x 60mm
Max compatible fork travel160 mm

Wheels

Hub frontBontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rearBontrager Switch thru-axle, removable lever
TyreBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Max tyre sizeFrame: 29x2.50", Fork: See manufacturer

E-system

BatteryTQ 360Wh
ChargerTQ 4A charger
ComputerTQ LED display with Bluetooth & ANT+ connectivity
MotorTQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain

ShifterShimano Deore M6100, 12-speed
Rear derailleurShimano Deore M6100, long cage
CrankE*thirteen E*spec Plus, 165 mm length
ChainringE*thirteen E*spec, 32T alloy ring, 55 mm chainline
CassetteSunRace CSMZ800 11-51, 12-speed
ChainShimano Deore M6100, 12-speed
Max. chainring size1x: 34T, min 30T

Components

SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize:S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size:M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size:L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
HandlebarBontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
GripsBontrager XR Trail Comp, nylon lock-on
StemBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
BrakeTRP Slate EVO hydraulic disc
Brake rotorTRP, 6-bolt, 203 mm
Rotor sizeMax brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Weight

WeightM - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
