The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost.
The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost.
Trek

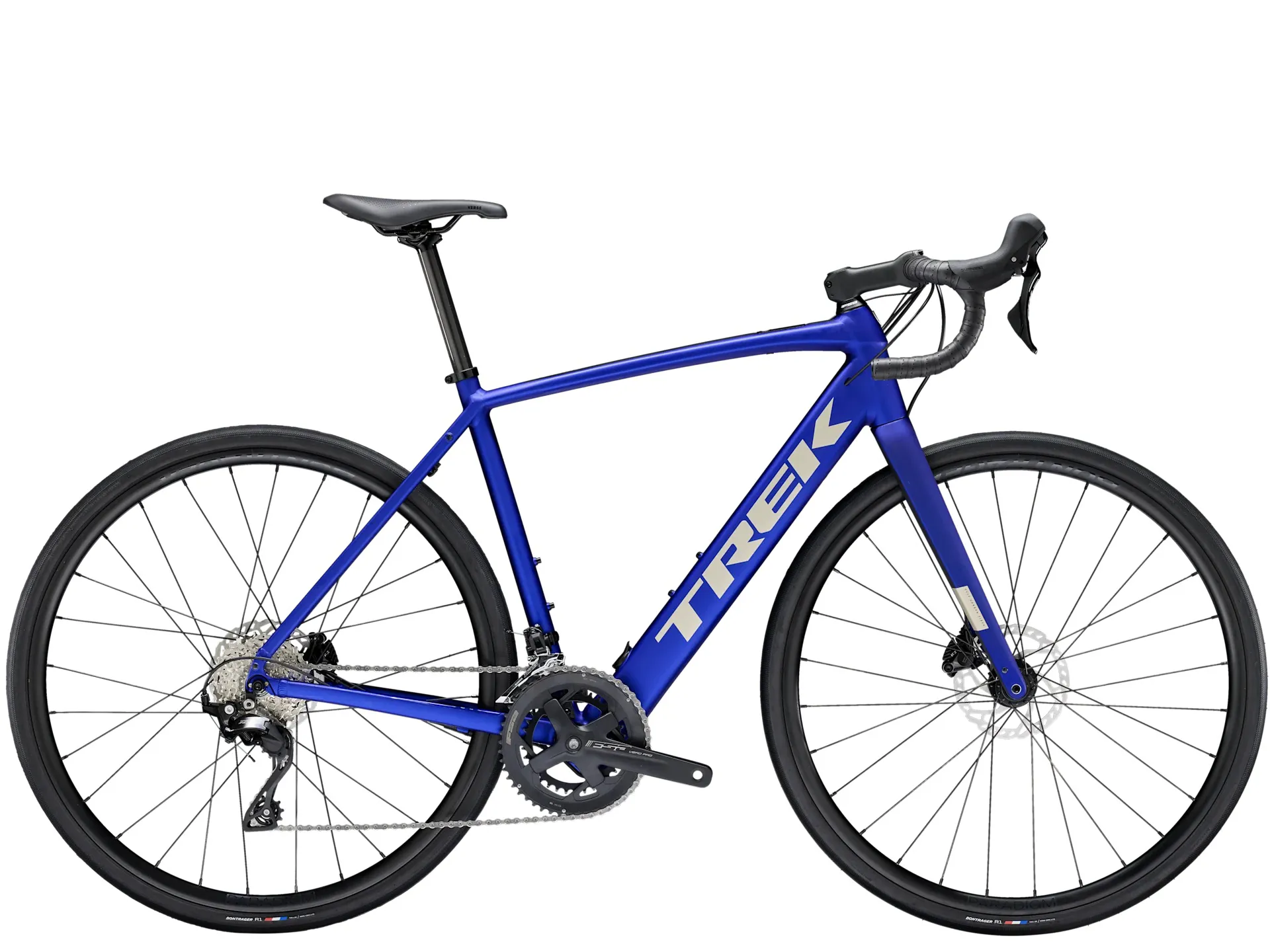

Trek Domane+ AL 5 Electric Road Bike In Matte Hex Blue

£3,100.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."



Trek Domane+ AL 5 Electric Road Bike In Matte Hex Blue

Season:2025

Brand:Trek

Code:47218BLU

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost.

The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

It's right for you if...You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

The tech you get - A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 32 km/h with a 250 Wh battery for a range of up to 88 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.

The final word - The Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

Features:

  • This e-road bike looks, rides and feels more like a traditional road bike
  • The HyDrive pedal assist system has a hub motor for a more natural ride feel
  • Easily change the electric-assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display
  • The stable Endurance Geometry delivers comfort and confidence
  • An optional 250 Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life.
Technical Information
  • Frame
    100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
  • Fork
    Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
  • Skewer Front
    Bontrager Switch thru axle, removable lever
  • Tyre
    Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
  • Max Tyre Size
    38mm without mudguards, 32mm with mudguards
  • Battery
    250 Wh, integrated in down tube
  • Charger
    2A, 42V output, 100V–240V AC input
  • Shifter
    Shimano 105 R7120, 12-speed
  • Front Derailleur
    Shimano 105 R7100, 31.8 mm clamp, down swing
  • Rear Derailleur
    Shimano 105 R7100, 36T max cog
  • Crank
    Size: 49 FSA Vero Pro, 50/34, 165 mm length; Size: 52 FSA Vero Pro, 50/34, 170 mm length; Size: 54, 56 FSA Vero Pro, 50/34, 172.5 mm length; Size: 58, 61 FSA Vero Pro, 50/34, 175 mm length
  • Bottom Bracket
    Torque sensor, threaded, 110 mm spindle
  • Cassette
    Shimano 105 7101, 11-34, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. Chainring Size
    2x: 50/34
  • Saddle
    Size: 49, 52 Verse Short Comp, steel rails, 155 mm width; Size: 54, 56, 58, 61 Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width; Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width; Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width; Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
  • Handlebar Tape
    Bontrager Supertack Perf tape
  • Head Set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake Rotor
    Shimano RT66, 6-bolt, 160 mm
  • Rotor Size
    Max brake rotor sizes: 160 mm front and rear
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
