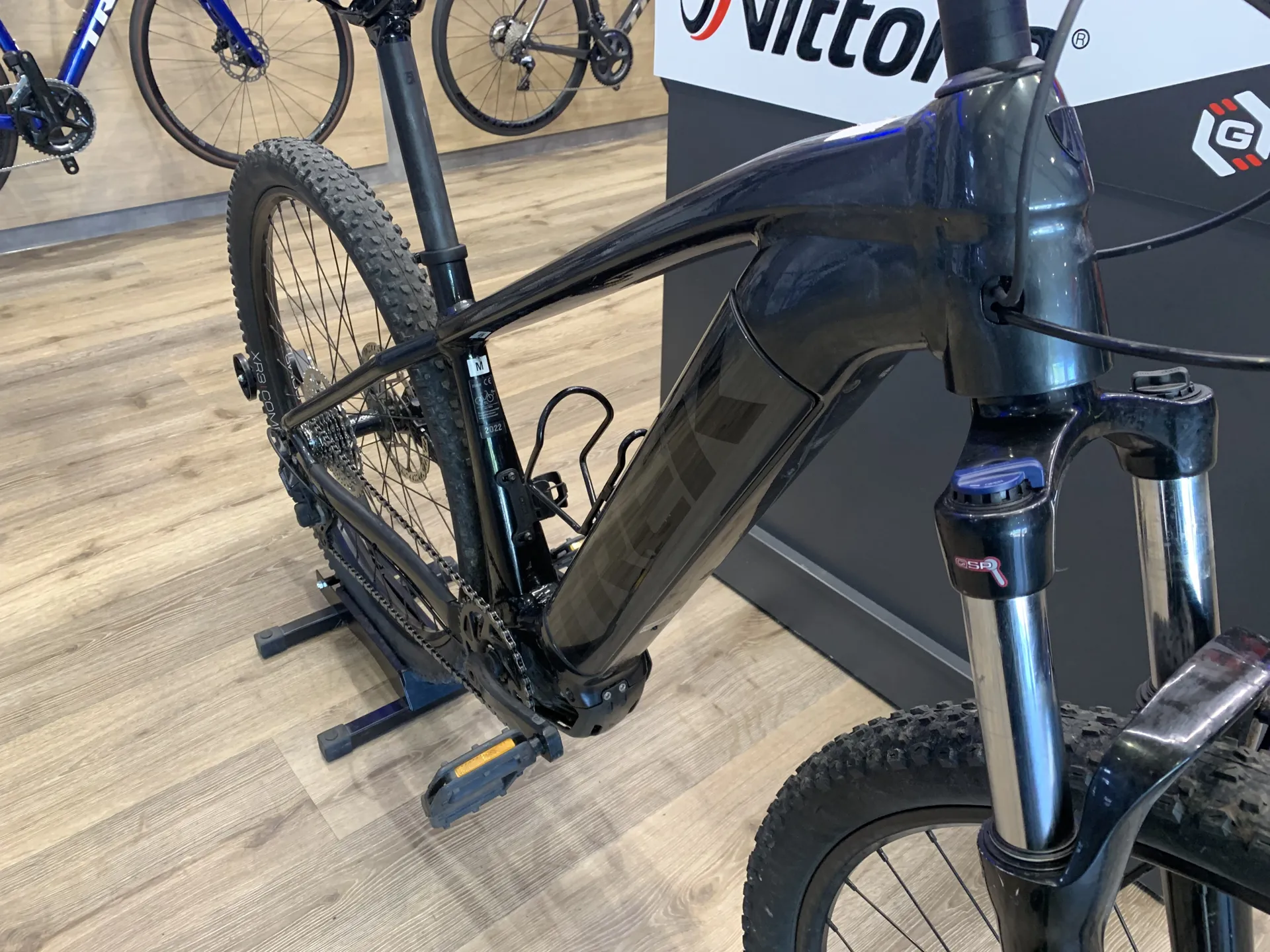

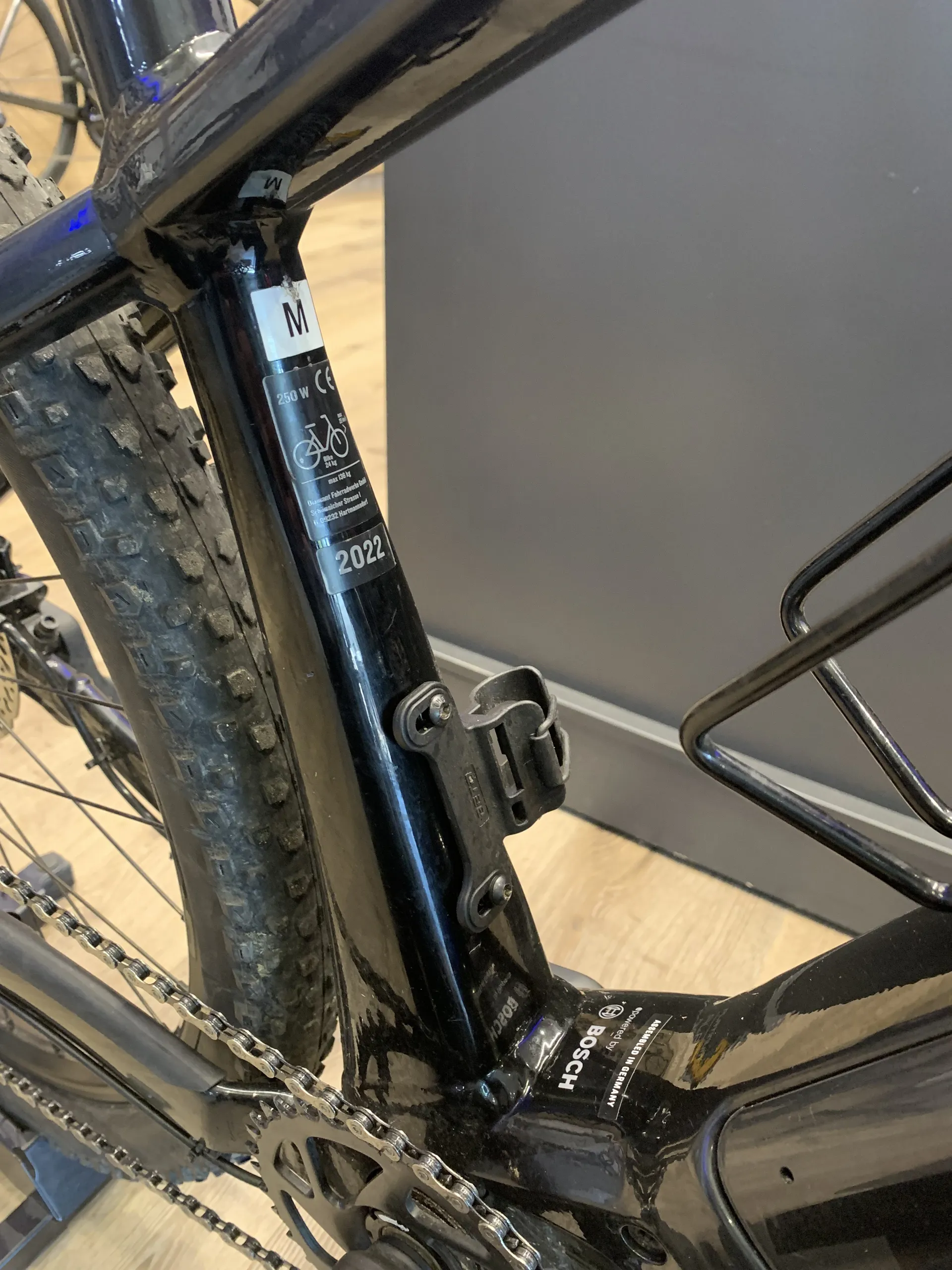

Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148

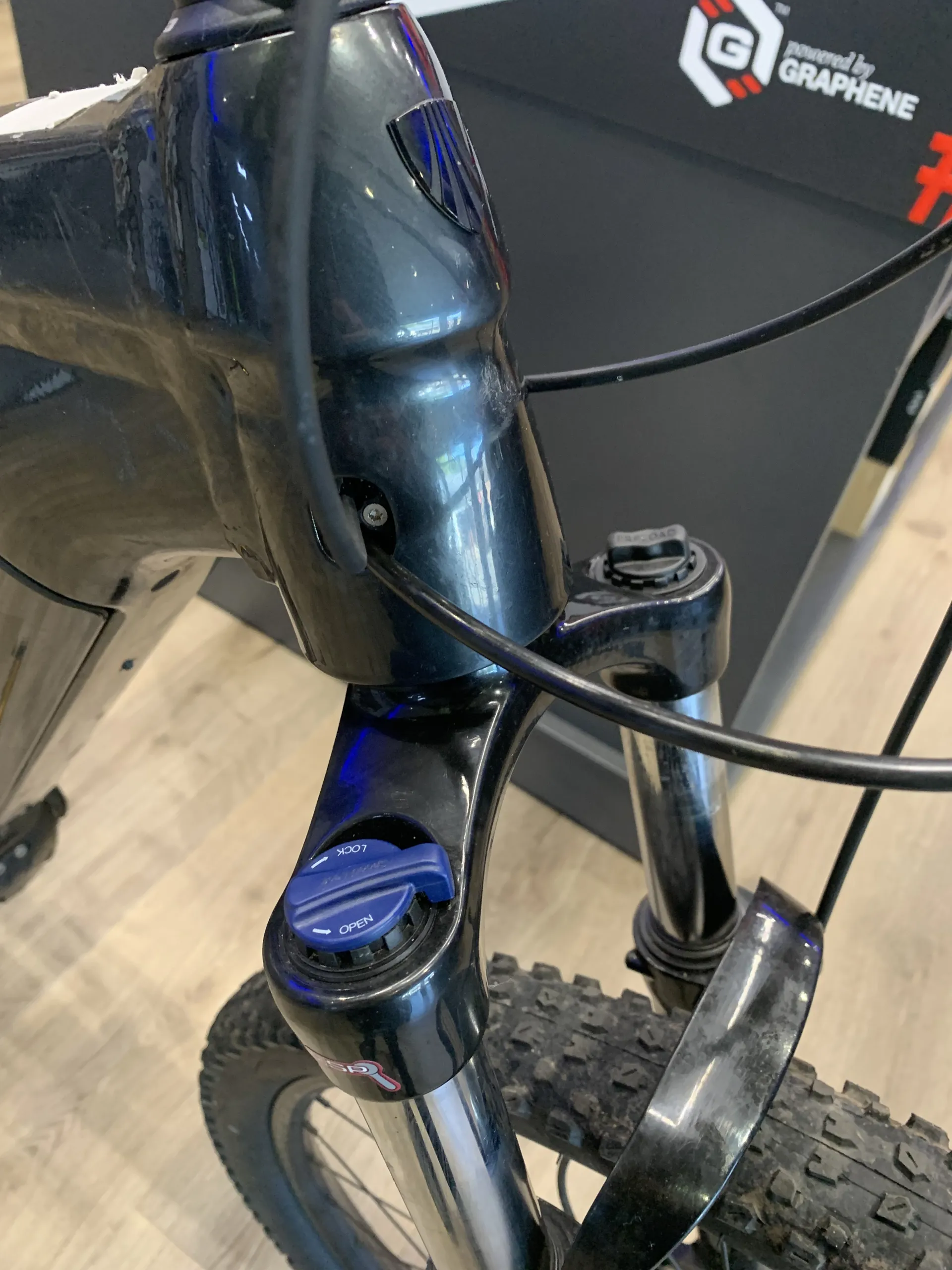

Fork
Size: XS, SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 80 mm travel
Size: S/M/L/XL, SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Front Hub
Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tyres
Size: XS/S, Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35"
Size: M/L/XL, Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
Shifters
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage

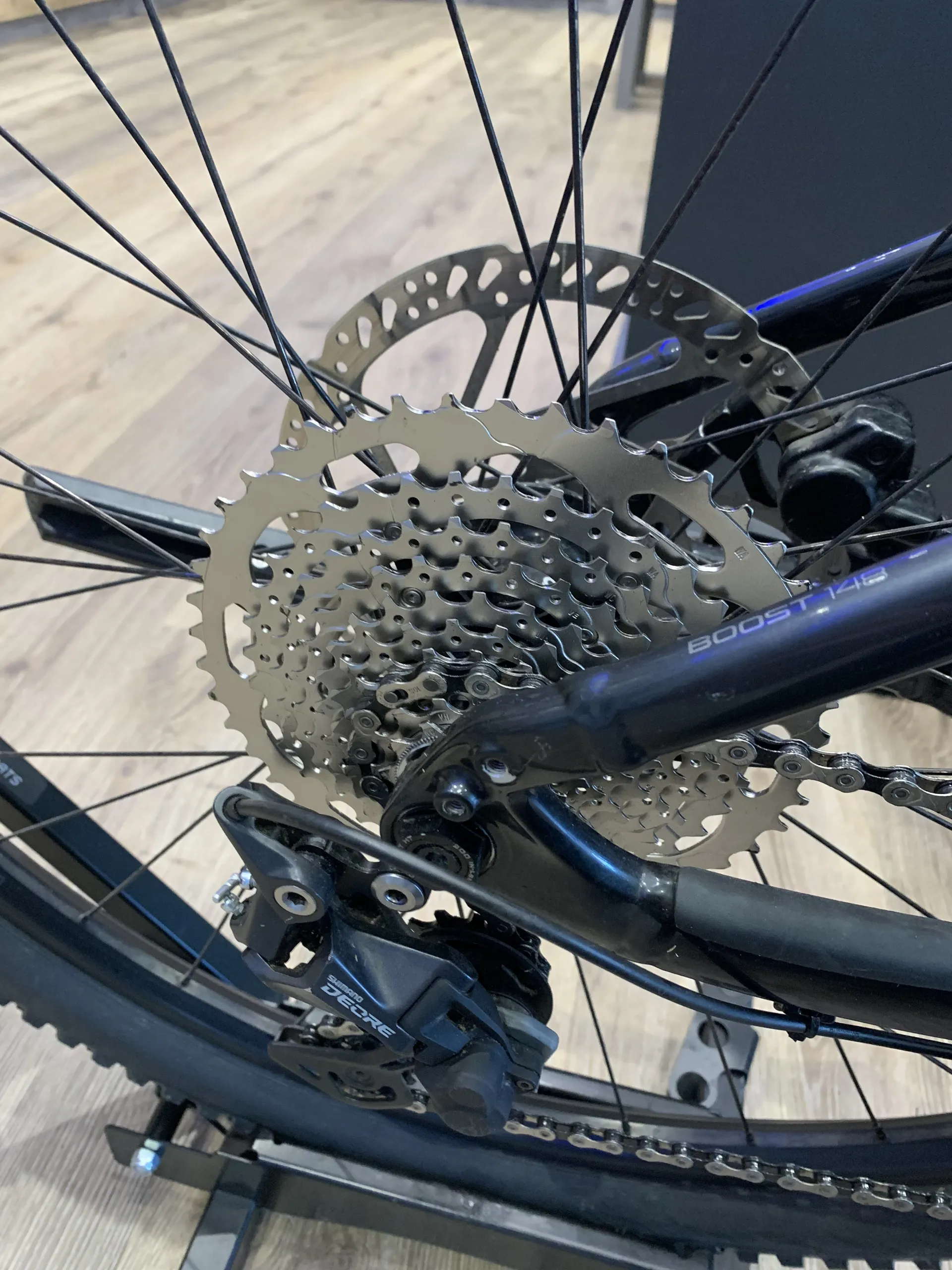

Cassette
Shimano Deore M4100, 11-46, 10-speed
Chain
KMC X10, 10-speed
Pedal
VP-536 nylon platform
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS/S, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: L/XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Size: XS/S, Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M/L/XL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Grips
Bontrager XR Endurance Comp
Stem
Size: XS, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S/M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: L/XL, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom

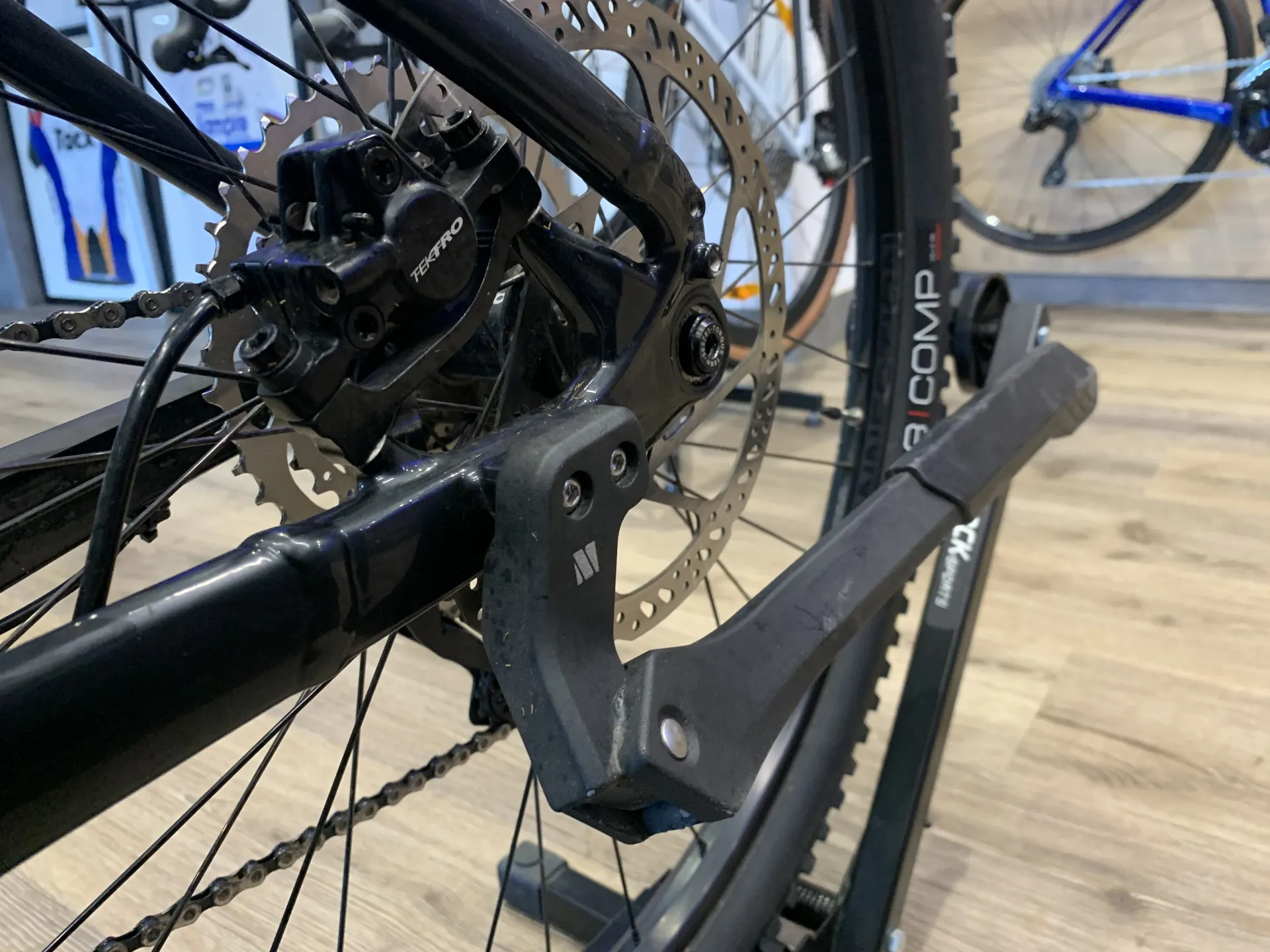

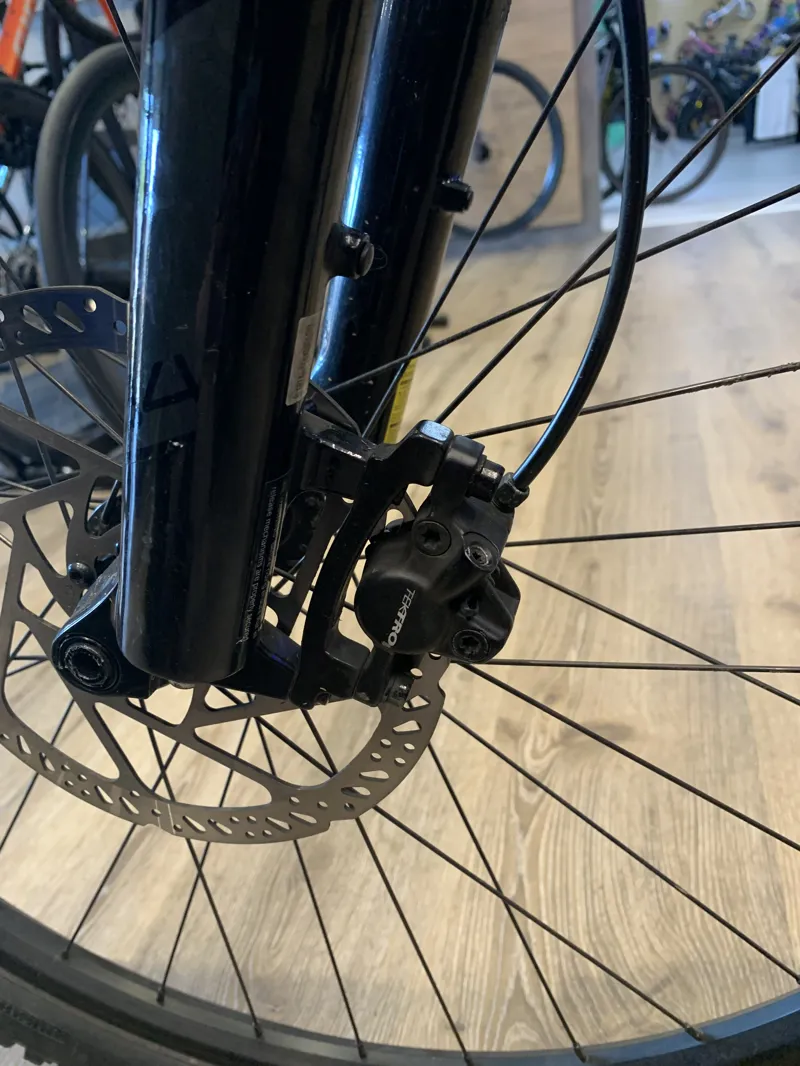

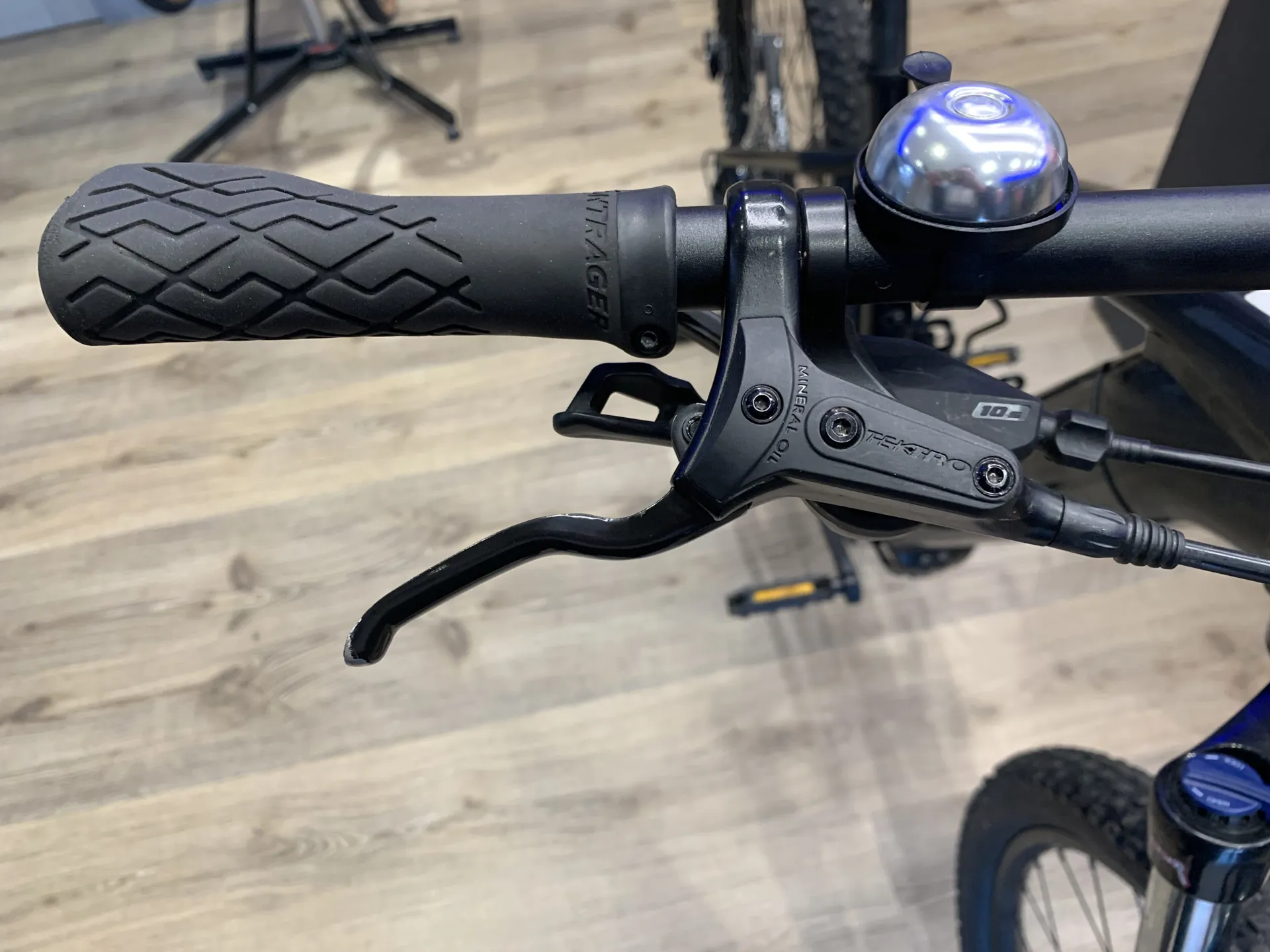

Brakeset
Tektro HD-M275 hydraulic disc
Battery
Bosch PowerTube 625
Charger
Bosch compact 2A (100-240 V) charger

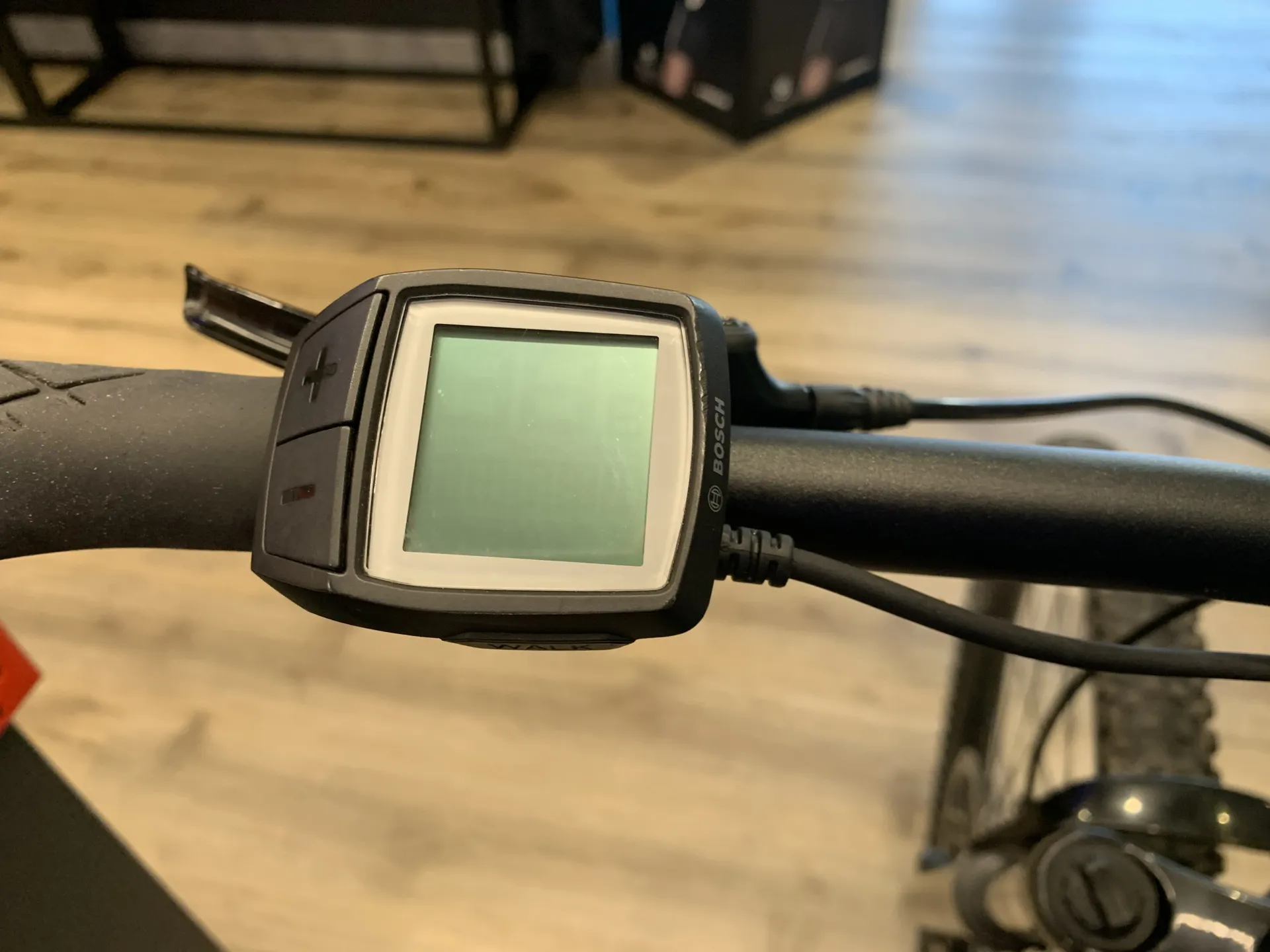

Controller
Bosch Purion

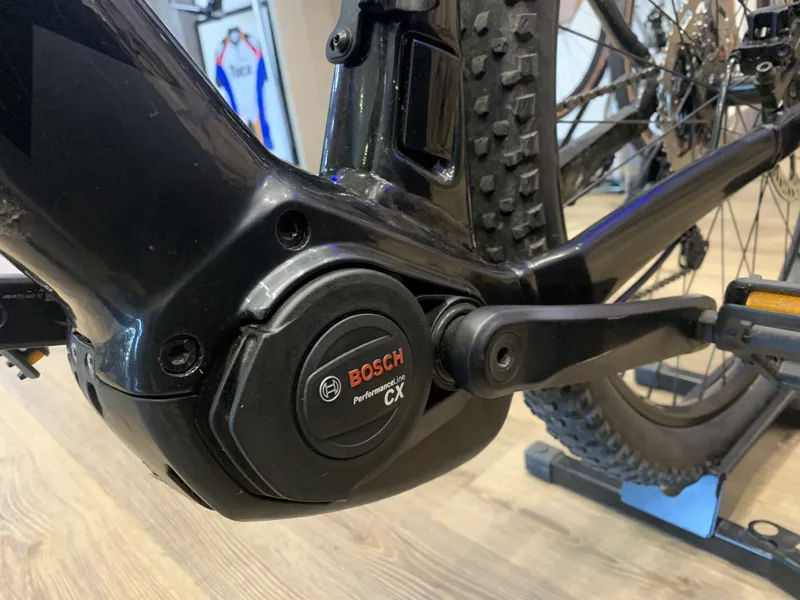

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 20 mph (25 km/h in Europe) max assist
Weight
M - 23.67 kg / 52.18 lbs (with tubes)
